Beyond Shape: Exploring the Diverse World of Aircraft Wing Configurations

INTRODUCTION

Aircraft wings are a marvel of engineering, with their shape and design playing a crucial role in flight. However, wing configuration – the positioning of the wing on the aircraft – is equally important, affecting stability, control, and overall performance. In this article, we'll delve into five key wing configurations, exploring their characteristics, advantages, and examples of aircraft that showcase each design.

1. High Wing Configuration

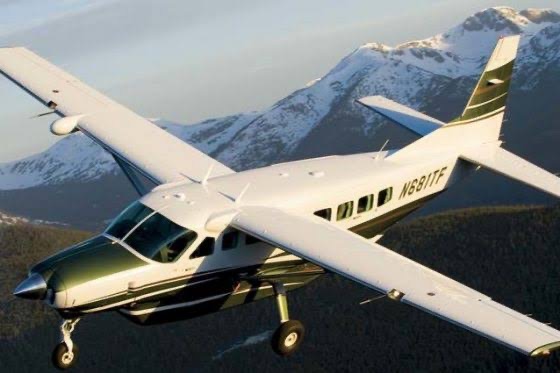

In a high wing configuration, the wing is mounted above the fuselage, providing increased ground clearance and improved visibility for the pilot. This design is often used in small aircraft, cargo planes, and amphibious planes. Example: Cessna 208 Caravan.

2. Mid Wing Configuration

Mid wing aircraft feature wings mounted midway between the top and bottom of the fuselage. This design balances stability and maneuverability, making it suitable for training aircraft and gliders. Example: Dassault Rafale

3. Low Wing Configuration

Low wing aircraft have wings mounted near the bottom of the fuselage, reducing drag and improving stability at high speeds. This design is commonly used in high-performance aircraft, such as fighter jets Trainer Airplanes and racing planes. Example: Diamond 40 NG Aircraft

4. Dihedral Wing Configuration

Dihedral wings are angled upward from the root to the tip, providing increased stability and roll resistance. This design is often used in commercial airliners and general aviation aircraft. Example: Boeing 737.

5. Anhedral Wing Configuration

Source - Air Force Technology

Anhedral wings are angled downward from the root to the tip, reducing stability but increasing roll rates and maneuverability. This design is typically used in high-performance aircraft, such as fighter jets and aerobatic planes. Example: Lockheed C-5 Galaxy

In addition to these configurations, modern aircraft often combine different designs to achieve optimal performance. For example, a high-wing aircraft with dihedral wings or a low-wing plane with anhedral tips. Understanding wing configurations is essential for aerospace engineers, pilots, and aviation enthusiasts, as it showcases the incredible diversity and innovation in aircraft design.
